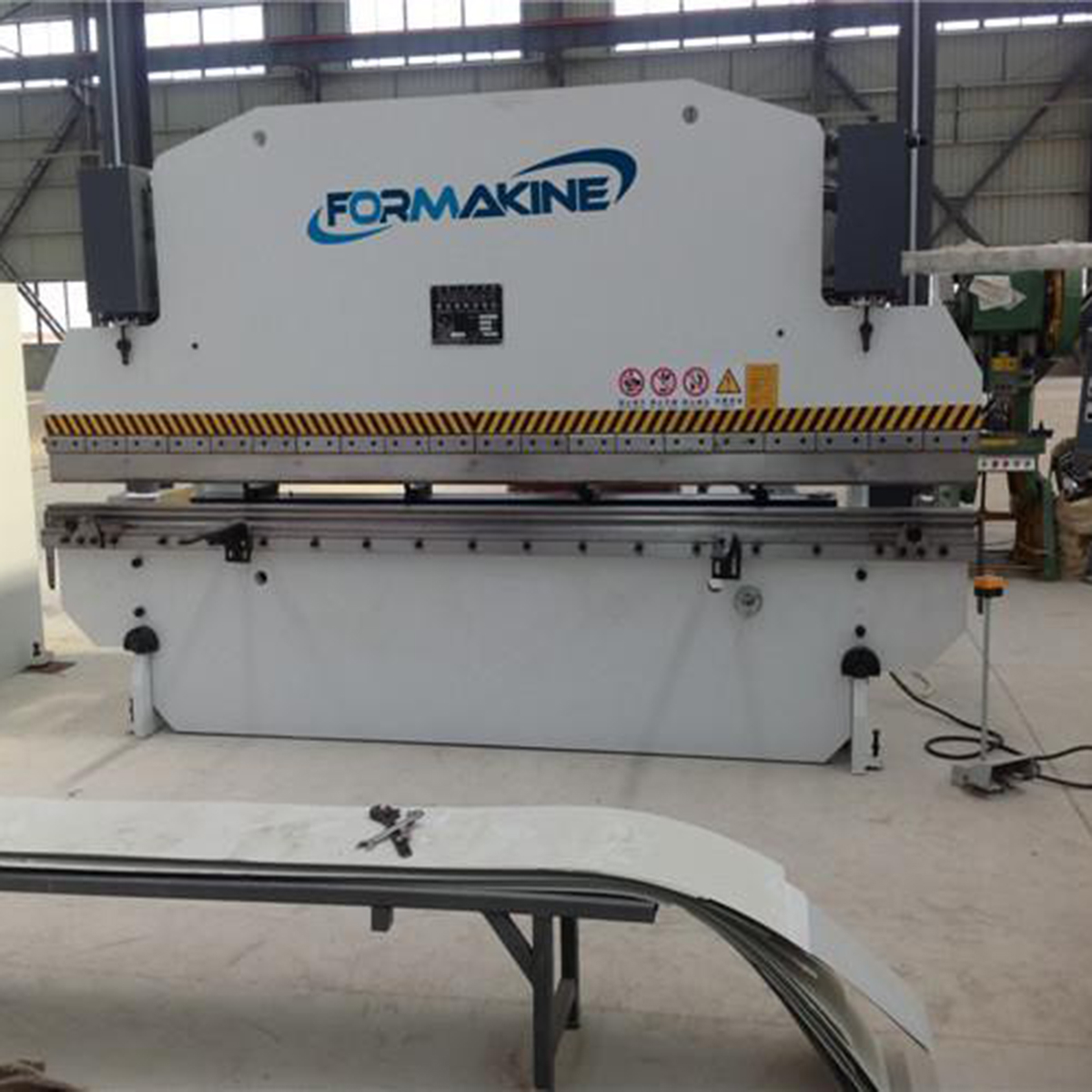

Semi Automatic CNC Press Brake

Short Description:

The press brake machinery equipment is metal plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.

Send email to us

Product Detail

Product Tags

Product Features

The press brake machinery equipment is metal plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
Double hydraulic oil cylinders are applied for upper transmission,provided with mechanical limit stopper and synchronize torsion bar,typical of stable and reliable operation, as well as high precision.
Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with NC controller.
Multi-steps programming function is able to achieve an automatic operation and continous positioning of multi-steps procedures, as well as an automatic precision adjustment for positions of rear stopper and upper beam.
The machine is provided with bend counting function, real-time display of processing quantity, power-failure memory of positions of rear stopper,upper beam, programs and parameters.
Upper punch clamping fitted with deflection compensation device.

Technical Specifications

Model	Nominal Force	Bolster Length	Between Columns	Throat Depth	Slide Stroke	Max. Shut Height	Main Motor Power
	KN	Mm	Mm	Mm	Mm	Mm	KW
HPBF-63/2500	630	2500	2000	250	100	370	5.5
HPBF-63/3200	630	3200	2500	250	100	370	5.5
HPBF-80/3200	800	3200	2500	250	120	380	5.5
HPBF-100/3200	1000	3200	2500	320	120	400	7.5
HPBF-100/4000	1000	4000	3000	320	120	400	7.5
HPBF-125/3200	1250	3200	2500	320	120	400	7.5
HPBF-125/4000	1250	4000	3000	320	120	400	7.5
HPBF-160/3200	1600	3200	2500	320	180	450	11
HPBF-160/4000	1600	4000	3000	320	180	450	11
HPBF-160/6000	1600	6000	4100	320	180	450	11
HPBF-200/3200	2000	3200	2450	320	200	470	15
HPBF-200/4000	2000	4000	3000	320	200	470	15
HPBF-200/6000	2000	6000	4500	320	200	470	15
HPBF-250/3200	2500	3200	2450	400	250	540	15
HPBF-250/4000	2500	4000	3000	400	250	540	15
HPBF-250/6000	2500	6000	4600	400	250	540	18.5
HPBF-300/4000	3000	4000	3000	400	250	560	18.5
HPBF-400/4000	4000	4000	3100	400	250	560	22
HPBF-400/6000	4000	6000	4500	400	250	560	30
HPBF-500/4000	5000	4000	3100	500	250	600	30
HPBF-500/6000	5000	6000	4500	500	250	600	30
HPBF-600/8000	6000	8000	6000	500	300	650	45
HPBF-800/6000	8000	6000	4500	500	300	650	55
HPBF-1000/6000	10000	6000	4500	500	300	650	75
