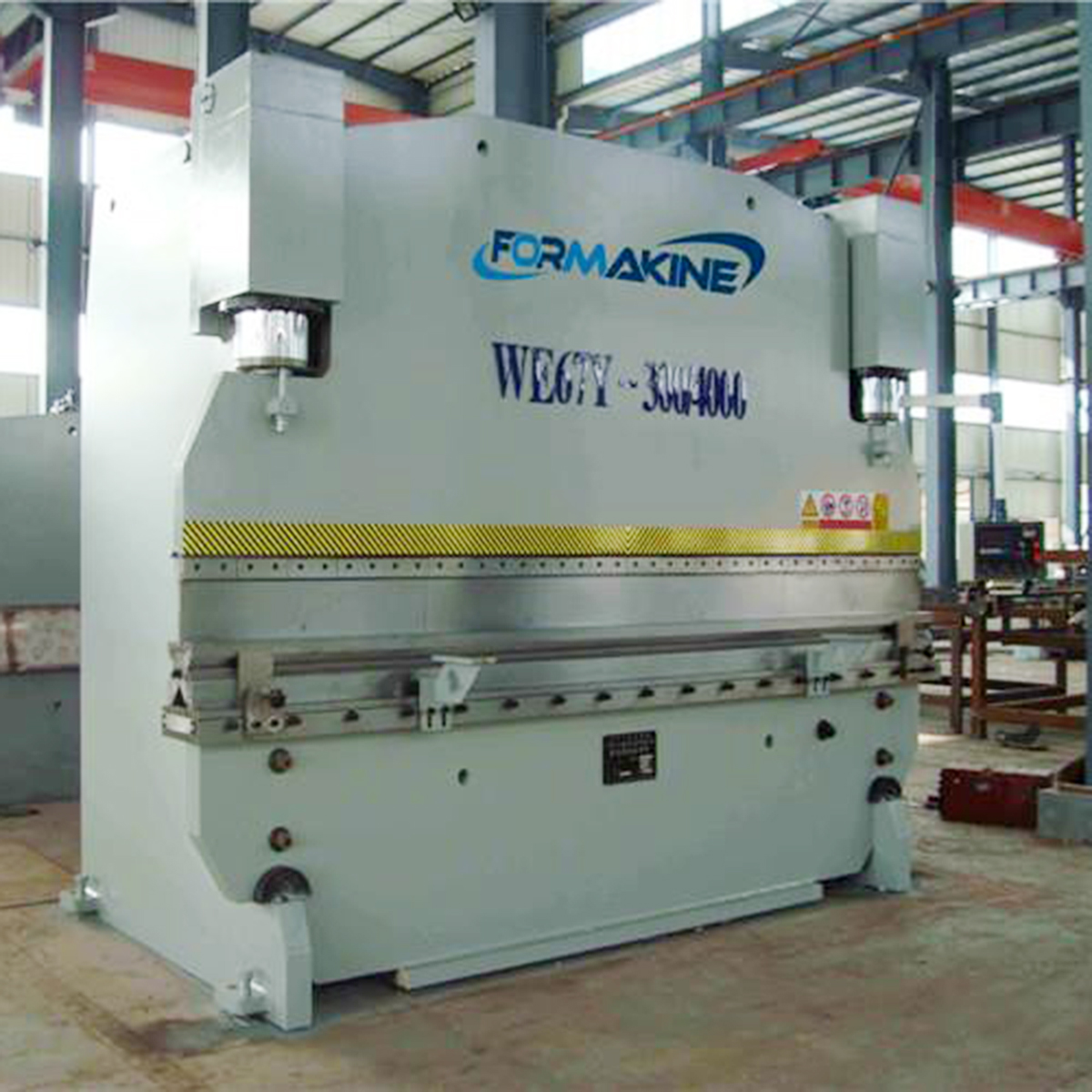

Hydraulic CNC Sheet Metal Bending Machine

Short Description:

Press brake, also known as a brake press, is a machine tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die.

CNC press brake use for continues and complex working pieces manufacturing , advance in Efficiency.

Send email to us

Product Detail

Product Tags

Product Features

1.Totally EU Streamlined Design,Monoblock By Welding Robots & Aparatus And Stress Relief Process By Annealing Treatment.

2.All Machines Are Designed Using SOLID WORKS 3D Programming And Made With Enhanced ST44-1 Quality Steel With The Latest Technology.

3. CNC Synchronized Series Are Among The Highest Rated Machines Which Will Help You Increase Your Productivity And Keep Costs At Minimum Level With Its User Friendly CNC Controller And Low Cost Hydraulic Maintenance.

4. High Quality And Repetitive Bending Is Obtained By Using Synchronized Cylinders And Valves.

5. Automatic Axis Referencing And Calibrating When Machine Is Turned On.

6. Rigid Upper Beam Runs On 8-Point Bearings With Bending Precision Of 0.01 Mm

7. Well-Known Top And Bottom Tool Brands Are Long Lasting Stiffened And Provide Precise Bending.Silent High Pressure Pump.

Standard Equipment

1. 4- Axis Delem DA66T Programming Mode CNC Control

2. Full Synchronisation Of Y1 + Y2 Axes With Proportional Hydraulic Valve System And Constant Monitoring By CNC System To +/- 0.01mm Accuracy

3. High Precision Linear Scales For Measurement Of Stroke Depth Mounted On Side Frames Rather Than Top Beam To Prevent Any Distortion In Accuracy As Beam Comes Under Load

4. CNC-Controlled X & R-Axis As Standard Ballscrew Backgauge With Servo Drive Motors.

5. Light Guards

6. Two Micrometric Backgauge Finger-Stops With Lateral Adjustment

7. Steel Mono-Block Construction

8. Polished Chrome Plated And Ground Cylinders

9. Long Stroke And Large Open Height Dimensions

10. High Approach And Return Speeds For Production Bending.

11. Euro Style Quick Release Top Tool Holders With Intermediaries Including Wedges For Crowning.

12. 88 Degree Sectionalised Goose Neck Top Tool

13. 4 Way Sectionalised Multi Vee Bottom Tool

14. Double Footswitch Control And Pendant Type Control Arm.

15. AKAS Laser Tooling Guards

16. Electrically Interlocked Side Guards

17. Electrically Interlocked Read Access Door

18. 2 Sliding Front Support Arms With Linear Guide Rails For Lateral Adjustment And Hand Wheel For Height Adjustment, 1000mm Long From Centre Of Bottom Tool Vee.

19. Side Guard Is Standard Meeting CE Regulations.

Delem DA66T CNC Press Brake Control System

1. 2D Graphical Touch Screen Programming Mode

2. 3D Visualisation In Simulation And Production

3. 17" High Resolution Colour TFT

4. Full Windows Application Suite

5. Delem Modusys Compatibility (Module Scalability And Adaptivity)

6. USB, Peripheral Interfacing

7. User Specific Application Support Within The Controllers Multitasking Environment

8. Sensor Bending & Correction Interface

The Best Bending Results You Can Bend Longer And Deeper Parts With Standard SC/MB8-Bend Series.
