H Frame Double Crank High Speed Precision Press
Product Description
200 Ton High Speed Lamination Press Machine For Motor Core Stator And Rotor
●High-Speed Precise Punch Press With Six Circle Pillar And Two Centers.
● Refrigerator Which Works Only To Cool The Oil Temperature Or Homoeothermic Lubrication Machine(Heating + Cooling Device) Can Be Allocated;
● Pneumatic Motor Mold Depth Regulator (Adjusting The Die-Height Of Sliding Block);
● Advanced Mobile Balance System Can Help Lower Noise And Vibration To The Minimum, So As To Ensure The Best Precision And Balance;
● Independent Controlling Box. With Liquid Crystal Screen, It's Easy To Operate And Has Versatile Functions.There Are Additional Controlling Keys Installed At Sides Of The Punch Press.
● Advanced Alloy Copper Cover And Bush Have Been Widely Applied In The Structures Of Cranks,Connecting Rods, Axle Covers And Central Pillars. Covers And Bushes Have High Degree Of Hardness And Grinding Resistance. Besides, They Can Bear High Loading (20Mpa) And High Sliding Speed And Are Not Easy To Cause Axis Holding Situation. In This Way, The Pressure Held By Unit Area Of The Cover And Bush Is Reduced To The Minimum, Which Make Them Maintain Steady And Excellent Punching Precision Despite The Eccentric Loading, So As To Extend The Service Life Of The Punch Press.

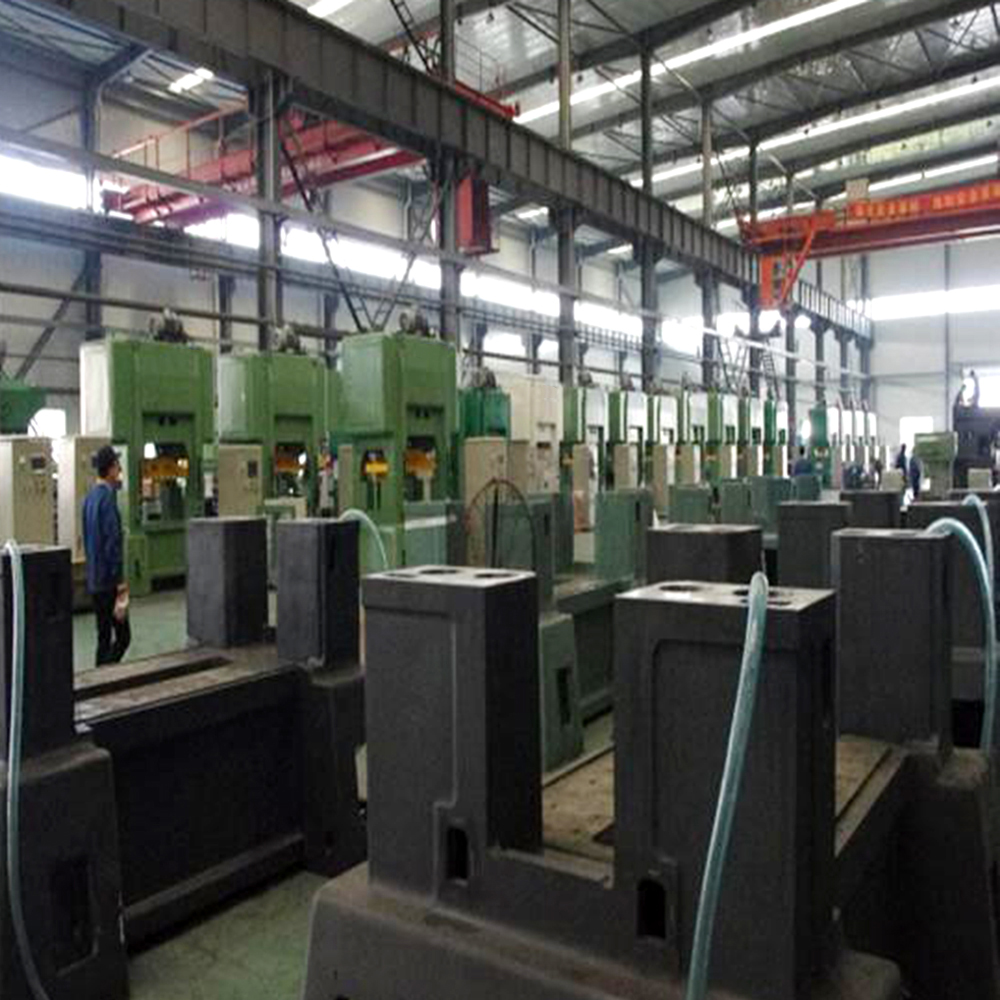

● For All The Important Cast Componenets Such As Body, Foundation, Sliding Block, Flywheel And Connecting Rod, Etc., Modular Cast Iron High Intensity And Grinding Resistance Is Adopted And Treated With Artificial Ageing Method. According To The Inspection Reports Made By The Quality Inspection
Department, The Performance Of Machine Body Is Steady, The Precision Degree Reliable And The Damping Capacity Excellent.
● All The Bearings Rods Applied In The Press Are Imported Form Japan, So As To Ensure That The Machine Can Work Safely With High Speed, Precision And Longer Service Life.
Main Structure & Technical Specifications
1. Main Mechanical Press
1.1. Model: FMH-200, H-type cast-iron frame with separated structure, two connecting rod, high precision mechanical press
1.2. Rated tonnage: 200 tons
1.3. Stroke of Slide: 30 mm
1.4. Strokes per minute: 160-450 spm (at cont. mode)
1.5. Max. die setting height: 420 mm
1.6. Die height adjustment: 50 mm
1.7. Distance between uprights (F-B): 400 mm
1.8. Size of Table (L-R*F-B): 1700x950 mm
1.9. Bottom Size of Slide: 1700x650 mm
1.10. Total weight (approx.): 36 tons
1.11. Voltage: 380V/50Hz/3Phase
2. Double-Reel Decoiler
2.1. Type: Inner-distended Type (hydraulic)
2.2. Max Outer Diameter of coil: Φ1200mm
2.3. Inner Diameter of coil: Φ460—Φ540
2.4. Max Width of coil: 300mm
2.5. Max coil weight: 2x2000Kg
3. S-Type Straightener
3.1. Max strip width: 300mm
3.2. Suitable strip thickness: 0.4—1.0mm
3.3. Speed range: 0—50m/min
3.4. Moter drive mode: by frequency invertor
4. Feeder
4.1. Feeding mode: cam drive, gear changeable, periodically feeding
4.2. Max strip width: 300mm
4.3. Suitable strip thickness: 0.4—1.0mm
4.4. Feed step length: submitted by the user/die-maker
4.5. Feed line height: submitted by the user/die-maker
4.6. Feed direction: left-right
4.7. Check mode for strip end: by photo-electrical sensor
5. Accesories
5.1. Hydraulic die lifters, model: DL-50-900 (2 pcs/made by Forwell, Taiwan)
5.2. Die moving arms, model: RC-1000-1600 (2 pcs/ made by Forwell, Taiwan)
5.3. Spring-type anti-vibration mounts, model: PSG-4.4-721 (4 pcs/ made by GERB)
5.4. Front and back 2 sets of photo electric sensor.
5.5. Woolen blanket type Material lubrication.
6. Electrical System
6.1. Type: Standing Electrical Box, Moveable Operator panel
6.2. Power Voltage: 380VAC, 50HZ, 3Phase
6.3. Mitsubishi PLC, Siemens Motor and YASKAWA frequency Drive Invertor, WEINVIEW (Taiwan)
Touch-screen, Mitsubishi Encoder, etc.
7. Others
7.1. Machine Color: Green, subject to catalog.
7.2. Power and Pipe connection: Supplied by user
7.3. Foundation: Supplied foundation drawing by the seller, made by the customer
7.4. Instruction Manual: English Manual x 1
7.5. Spare Parts for one year
7.6. Key components list as follows:
Clutch Valve is made by ROSS or MAC (USA)
PLC is made by Mitsubishi
Main motor and frequency invertor are made by YASKAWA
Pneumatic Electromagnetic valves are made by SMC
Main Electrical Components are made by TELEMEKENIQUE
Main roll bearings are made by INA/FAG (Germany)
Air combination friction clutch-brake unit is made by OMPI (Italy)
Touch screen is made by WEINVIEW
Digital cam encoder is made by Mitsubishi
Linear roll bearings for guiding slide are made by THK (Japan)
Anti-vibration mounts are made by GERB
Oil cooling machine is made by POINT (Taiwan)
