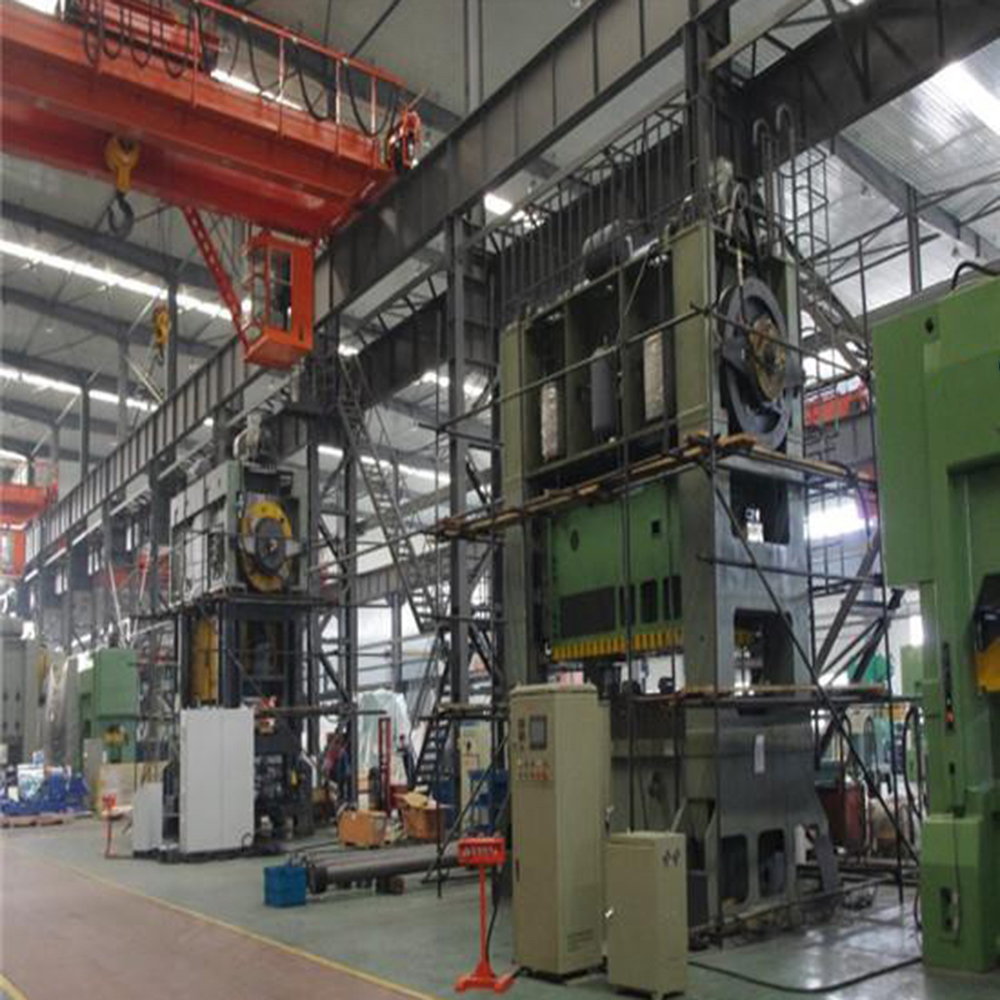

H Frame Double Crank High Speed Laminating Press
Product Details
The Structural Features Of This Heavy Duty Lathe Machine Are As Follows:
1. With Straight Side Type And Welding Body, The H-Frame Press Has Good Rigidity;
2. Distance Between The Plate And The Slide Area Is Long, Thus Makes The Crank Press Machine Easy To Operate;
3. High Rigidity Cast Iron Blocks, Having Good Shock-Absorbing Ability;
4. Owing To The Eight-Side Long Rectangle Guides Of The Slide, The Straight Sided Press Is Of High Guiding Precision;
5. Connecting Rod Screw Hydraulic Lock Ensures The Bottom Center Precision;
6. The Heavy Duty Lathe Machine Adopts The Centralized Automatic Lubrication System, Which Is Convenient, Accurate In Fuel Supply, Thus Ensures That The Crank Press Machine Runs Smoothly;
7. Rotary Encoder Controlled With Human-Machine Interface, So It Is Easy To Access To Operation.
125 Ton Shaded Pole Motor Laminations Stamping Line
|
Main Mechanical Press |
|
| Model | FMH-125 |
| Rated tonnage | 125 tons |
| Stroke of Slide | 30 mm |
| Strokes per minute | 160-500 spm |
| Max. die setting height | 400 mm |
| Die height adjustment | 50 mm |
| Distance between uprights (L-R*F-B) | 1340×400 mm |
| Size of Table (L-R*F-B) | 1300×850 mm |
| Bottom Size of Slide | 1300x600 mm |
| Total weight (approx.) | 24 tons |
| Voltage | 380V/50Hz/3Phase |
|
Double-Reel Decoiler |
|
| Type | Inner-distended Type |
| Max Outer Diameter of coil | Φ1200mm |
| Inner Diameter of coil | Φ460—Φ540 |
| Max Width of coil | 200mm |
| Max coil weight | 2x1000Kg |
|
S-Type Straightener |
|
| Max strip width | 200mm |
| Suitable strip thickness | 0.4—1.0mm |
| Speed range | 0—50m/min |
| Moter drive mode | by frequency invertor |
Feeder
1. Feeding mode: cam drive, gear changeable, periodically feeding
2. Max strip width: 200mm
3. Suitable strip thickness: 0.4—1.0mm
4. Feed step length: submitted by the user/die-maker
5. Feed line height: submitted by the user/die-maker
6. Feed direction: left-right
7. Check mode for strip end: by photo-electrical sensor
Standard Accesories
1. Hydraulic die lifters, model: DL-28-850 (2 pcs)
2. Die moving arms, model: XRC-750 (2 pcs)
Electrical System
1. Type: Standing Electrical Box, Moveable Operator panel
2. Power Voltage: 380VAC, 50HZ, 3Phase
3. Control Voltage: 220VAC, 50HZ, 1Phase
4. Mitsubishi PLC, Mitsubishi Invertor, Weinview Touch-screen, Mitsubishi Digital Cam Encoder, etc.
Others
1. Mchine Color: subject to customer’s requirement
2. Power and Pipe connection: Supplied by user
3. Foundation: Supplied foundation drawing by seller, made by the customer
4. Instruction Manual: English Manual×1
5. Spare Parts for one year
Key Components List
Clutch Valve is made by ROSS or MAC (USA)
PLC is made by Mitsubishi
Frequency inverter is made by Mitsubishi
Pneumatic Electromagnetic valves are made by SMC
Main Electrical Components are made by TELEMEKENIQUE
Main roll bearings are made by INA/FAG (Germany)
Air combination friction clutch-brake unit is made by OMPI (Italy)
Touch screen is made by Weinview
Digital cam encoder is made by Mitsubishi
