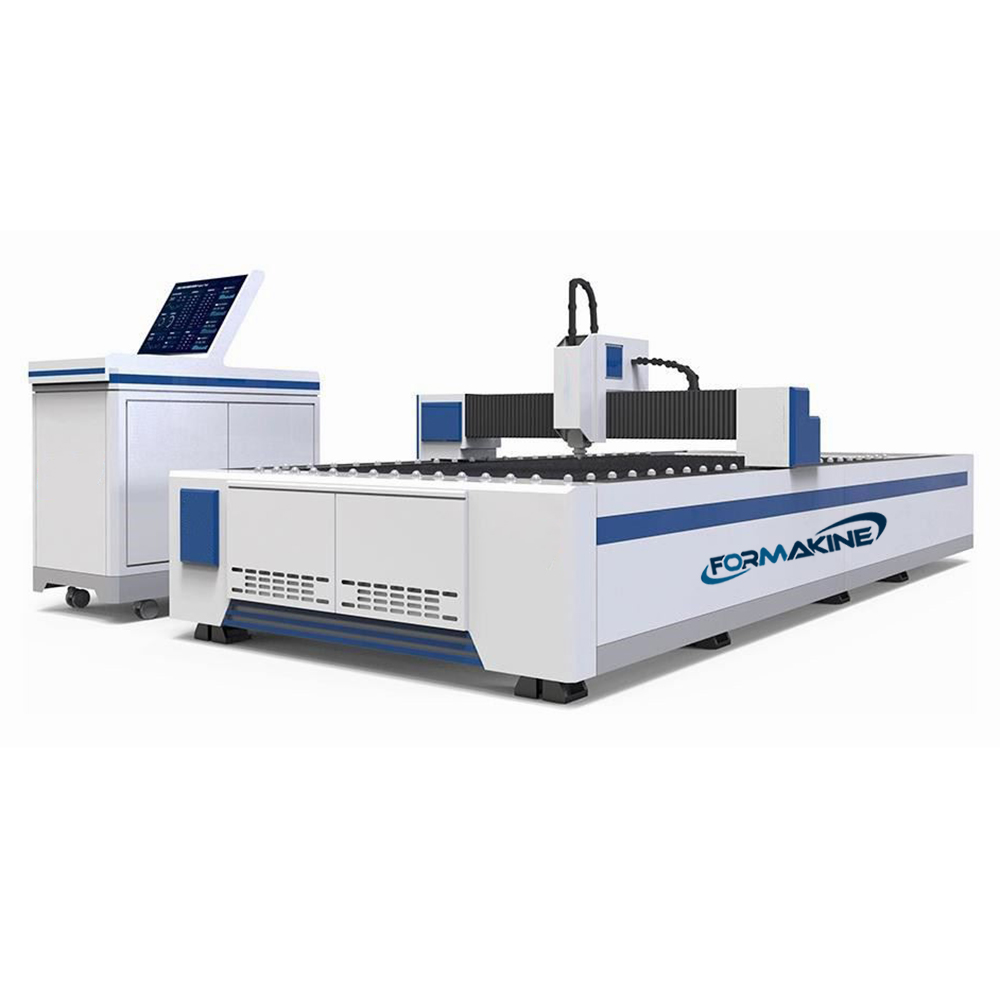

CNC Fiber Laser Metal Cutting Machine
Product Description
1. High-load mechanical mechanism.Adopting seamless welding and body bending technology.
2. More scientific design and high-strength steel-frame structure, which increase more than 40% fuselage strength to prevent the machine from distortion during long time work.That can make sure the machine stable and reliable working performance.
3. Raycus brand laser source working lifetime over 100,000 hours.The industry's best quality fiber optic manufacturer,microfiber beam 0.001mm.
4.Taiwan Hiwin high-strength linear guide and imported high precision YYC rack.That ensure the laser machine continuously work for a long time working but deformed. Improve laser cutting accuracy and extend the machine lifetime.
5. High precision drive motor.The X / Y/Z axis uses a high-precision Yaskawa servo motor and drive. Improve response speed and cutting accuracy.
6. Adopt high-precision ASG geared motor imported from Japan.
7. The rail and rack automatic oil lubrication system can set the oiling interval and the amount of oil per load according to the working conditions of the machine.
8. Auto partitioned exhausted system.The smoke gas generated by the cutting can be completely eliminated.
9.S&A Industrial chiller.
10.Weihong/Cypcut professional cutting system.
Technical Specifications
| Model | FM-1530F Metal Fiber Laser Cutting Machine |
| Working Area | 1500*3000mm |
| Laser Power | 500W/1000W/1500W/2000W Raycus |
| Laser Wave Length | 1064nm |
| Working Table | Saw Tooth |
| Maximum Idle Running Speed | 1200mm/S |
| Position Accuracy | ±0.05mm/M |
| Position Speed | 20m/Min |
| Minimum Line Width | ± 0.02mm |
| Cutting Thickness | ≤6mm |
| Software And Control System | NC Editor (Optional Cypcut) |
| Position Type | Red Dot |
| Power Consumption | ≤12KW |
| Working Voltage | 220V-380V/50-60Hz |
| Auxiliary Gas | Oxygen, Nitrogen, Air |
| Air Proportional Valves | For Power 1000W And Higher |
| Working Life Of Fiber Module | More Than 100000 Hours |
| Fiber Laser Cutting Head | WEIHONG Or Raytools |
| Software | Compatible With Various Formats |
| Computer | Yes |
| Water Cooling System | S&A Industry Chiller |
| Motor | Japan Yasakawa Two 850W Y Motors + 850W X Motor |
| Driver | Yasakawa 1000W |
| Reducer | Shimpo/ ASG From Japan |
| Liner Guider System | Taiwan HIWIN |
| Rack Gear | YYC |
| Electric Component | Schneider Made In France |
| Weight | 3000Kg |
Picture Display
High-Precision ASG Geared Motor Imported From Japan
Japan Yaskawa Servo Motors And Driver
S&A Water Cooling Control System
The fiber laser and laser head even working at high temperature can be cooled quickly to ensure that the laser machine has stable power, high efficient and fast operation.Exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction, there'll be alarm prompt and stop working,can protect the working life of fiber laser effectively.
Weihong/Cypcut Professional Cutting System.The Operating System Can Realize Intelligent Layout Of Graphics Cutting And Support The Import Of Multiple Graphics, Optimizing Cutting Orders Automatically, Searching Edges Smartly And Automatic Positioning. Control System Adopts The Best Logic Programming And Software Interaction, Provides Stunning Operation Experience, Effectively Enhancing The Utilization Of Sheet Metal And Reducing Waste. Simple And Fast Operation System, Efficient And Accurate Cutting Instructions, Effectively Improve The User Experience.
