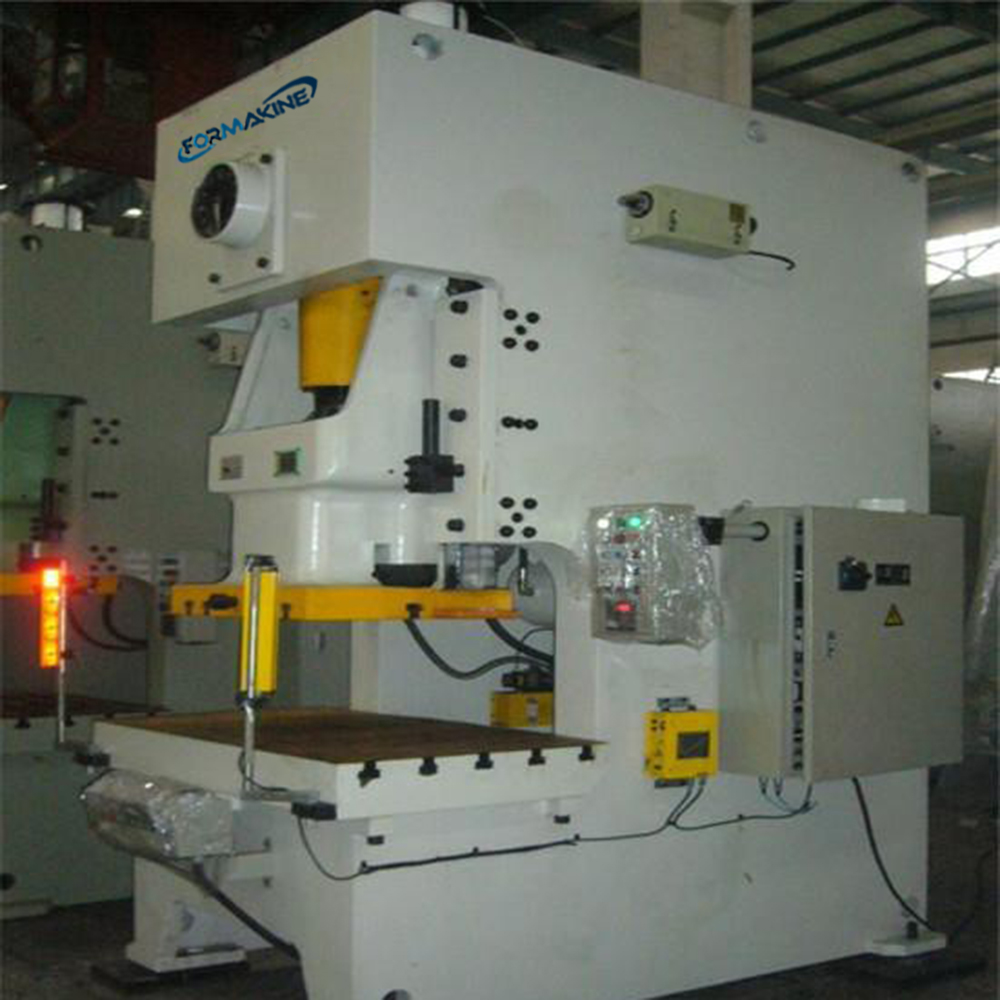

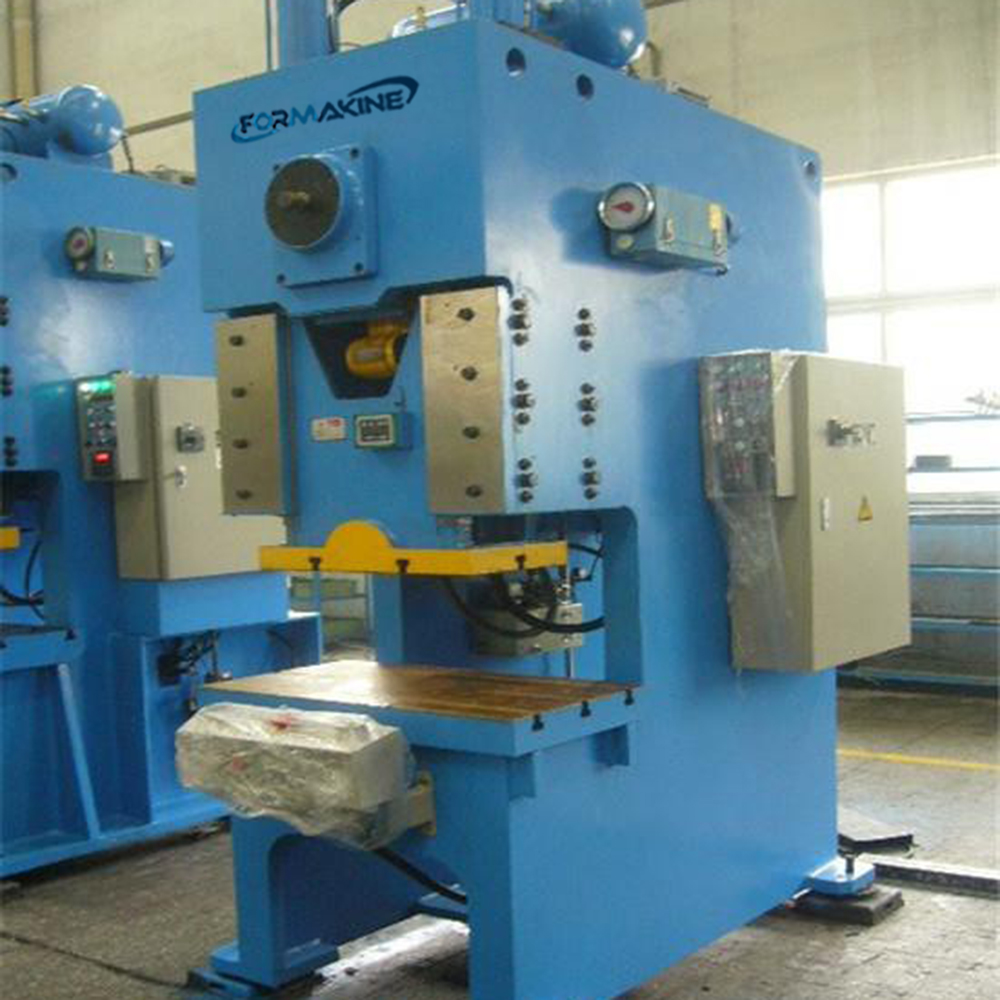

C Frame High Precision Power Press

Short Description:

◢High driving torque dry clutch and brake.
◢Super rigid steel frame.
◢Minimize frame deflection guaranteed.
◢Fast response hydraulic overload protection.
◢Extra-long, precision, six-point slide guide way.
◢Convenient die cushion installation.

Send email to us

Product Detail

Product Tags

Product Features

High-quality steel welding and outstanding design minimizes body deflection and deformation.
High sensitive and reliable HOLP (Hydraulic over load protector) extends press service life and improves machine accuracy.
Control by PLC with brand of OMRON or SIEMENS.

Technical Specifications

Name		APA-15	APA-15A	APA-25		APA-35		APA-45
Model		V	V	V	H	V	H	V	H
Capacity	Ton	15	25	25		35		45
Rated Tonnage Point	Mm	1	3.2	3.2	1.6	3.2	1.6	3.2	1.6
Speed Changing	S.P.M	120-180	60-140	60-140	130-200	40-120	110-180	40-100	100-150
Stable Speed	S.P.M	130	110	110		85		75
Stroke	Mm	60	80	60	30	70	40	80	50
Die Height	Mm	200	195	200	215	220	235	250	265
Slide Adjustment	Mm	50	50	50		55		60
Slide Area	Mm	300x230x50	300x230x50	300x230x50		300x230x50		400x300x60
Bolster Area	Mm	680x300x70	680x300x65	680x330x70		800x400x70		850x440x80
Shank Hole	Mm	Φ38.1	Φ38.1	Φ38.1		Φ38.1		Φ38.1
Main Motor	Kw.P	2.2x6	3.7x4	3.7x4		3.7x4		5.5x4
Slide Adjust Device	HP	Manual Operation
Air Pressure	Kg/Cm	6	6	6		6		6
Presses Precision		GB(JIS)1class	GB(JIS)1class	GB(JIS)1class		GB(JIS)1class		GB(JIS)1class
Presses Dimension	1236x830x192 1		280x850x220	1280x850x2200		1380x900x2400		1575x950x2500
Presses Weight	Mm	1.8	2.1	2.1		3		3
Die Cushion Capacity	Tons	~	~	~		2.3		2.3
Stroke	Mm	~	~	~		50		50
Die Cushion Effective Area	Mm2	~	~	~		300x230		300x230
Cushion Effective Area	2

Name		APA-60		APA-80		APA-110		APA-160
Model		V	H	V	H	V	H	V	H
Capacity	Ton	60		80		110		160
Rated Tonnage Point	Mm	4	2	4	2	6	3	6	3
Speed Changing	S.P.M	35-60	80-120	35-80	80-120	30-60	60-90	20-50	40-70
Stable Speed	S.P.M	65		65		50		35
Stroke	Mm	120	60	150	70	180	80	200	90
Die Height	Mm	310	340	340	380	360	410	460	510
Slide Adjustment	Mm	75		80		80		100
Slide Area	Mm	500x360x70		560x420x70		650x470x80		700x550x90
Bolster Area	Mm	900x500x80		1000x550x90		1150x600x110		1250x800x140
Shank Hole	Mm	Φ50		Φ50		Φ50		Φ65
Main Motor	Kw.P	5.5x4		7.5x4		11x4		15x4
Slide Adjust Device	HP	Manual Operation
Air Pressure	Kg/Cm	6		6		6		6
Presses Precision		GB(JIS)1class		GB(JIS)1class		GB(JIS)1class		GB(JIS)1class
Presses Dimension		1595x1000x2800		1800x1180x2980		1900x1300x3200		2315x1400x3670
Presses Weight	Mm	5.6		6.5		9.6		16
Die Cushion Capacity	Tons	3.6		3.6		6.3		10
Stroke	Mm	70		80		80		80
Die Cushion Effective Are	Mm2	350x300		450x310		500x350		650x420

Name		APA-200		APA-260		APA-315
Model		V	H	V	H	V	H
Capacity	Ton	200		260		315
Rated Tonnage Point	Mm	6	3	7	3.5	7	3.5
Speed Changing	S.P.M	20-50	50-70	20-40	40-50	20-35	35-50
Stable Speed	S.P.M	35		30		30
Stroke	Mm	200	100	250	150	280	170
Die Height	Mm	460	510	500	550	550	600
Slide Adjustment	Mm	110		120		120
Slide Area	Mm	850x630x90		950x840x100		1130x750x110
Bolster Area	Mm	1400x820x160		1500x840x180		1600x900x200
Shank Hole	Mm	Φ65		Φ65		Φ65
Main Motor	Kw.P	18x4		22x4		30x4
Slide Adjust Device	HP	Manual Operation
Air Pressure	Kg/Cm	6		6		6
Presses Precision		GB(JIS)1class		GB(JIS)1class		GB(JIS)1class
Presses Dimension		2615x1390x4075		2780x1850x4470		2870x1980x483
Presses Weight	Mm	23		32		36
Die Cushion Capacity	Tons	14		14		14
Stroke	Mm	100		100		100
Die Cushion Effective Are	Mm2	710x480		810x480		810x480

Main Configuration

Standard Components	Optional Components
Hydraulic Over Load Protector	Wet Clutch & Brake/OMPI Dry Clutch & Brake
Inverter	Die Cushion
Manual Slide Adjustment (15-60Ton)	Uncoiler/Decoiler
Auto Slide Adjustment (80-315Ton)	Straightener
Slide Balance Device	Feeder
ECAM	Quick Die Change System For Heavy Duty
Stroke Counter	Slide Knock-Out Device
Crank Angle Indicator	Foot Switch
Misfeed Detector	Die Room Light
Light Curtain	Safety Guards
Anti-Vibration Pads
