Air Conditioner High Speed Fin Press
Product Description
125 Ton Two Points Four Uprights High Speed Fin Press Production Line
1 Uncoiler Specifications
1.1 Type: Single Head Cradle Of Inner Distended Type
1.2 Material: Aluminum Coil
1.3 Max. Outer Diameter Of Coil: Φ1200mm
1.4 Inner Diameter Of Coil: Φ150±5mm And Φ200±5mm
1.5 Max. Width Of Coil: 1080mm
1.6 Coil Mounting Direction: The Same As The Operation Panel’s Direction
1.7 Uncoiler Sensor—Photoelectrical Sensor Type
1.8 No Coil Check—Photoelectrical Sensor Type
2 Oil Tank And Conductor
2.1 Type: Oil-Bathed Type
2.2 Max. Width Of Coil:1080mm
2.3 Conductor Type: Slip Type (Bolt Fixing Type)
2.4 Detect The Fin Oil: Alarm For No Oil
2.5 Material Suppressed Type: With Coarse Cotton Cloth

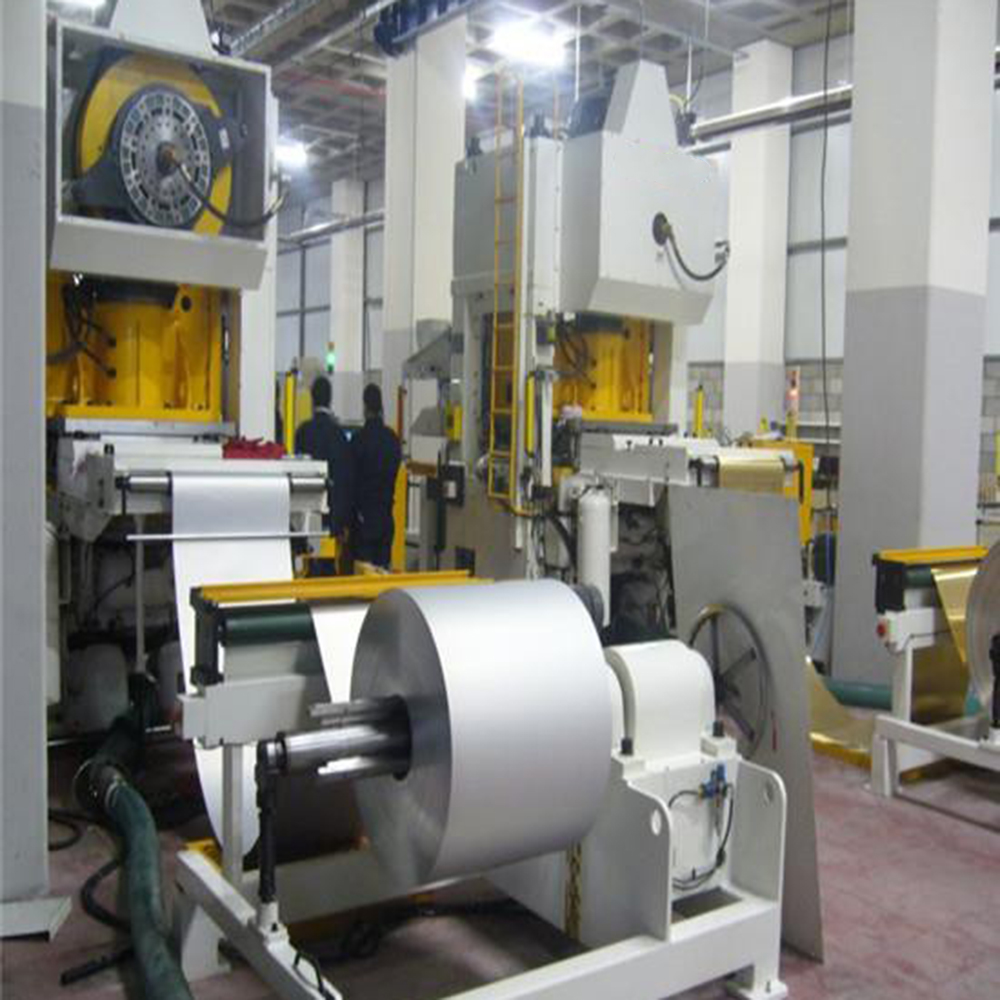

Picture Display
Technical Specification
1 Fin pressing specifications
1.1 Type: 125T four-uprights two-point
1.2 Capacity: 1250KN
1.3 Strokes per Minute:
Load speed: 150-250spm
No-load speed: 0-280spm
1.4 Stroke of Slide: 40mm
1.5 Die Height Adjustment: 50mm
1.6 Slide lifting Height (at min die. height): 100mm
1.7 Die Height: 270-320mm ( fulfill the die setting requirements )
1.8 Size of table: 1400x2000( fulfill the die setting requirements )
1.9 Bottom size of slide: 1350x1300mm
1.10Feed exchange structure, Feeding Length: 0-120mm
1.11 With air Feeder
1.12 Fin Parameter: Φ9.52×25×21.65×48R×2P ( The buyer supply the drawing)
1.13 With scrap case
1.14 With oil –spraying unit
2. Fin Sucked Unit
2.1 Type: sucked automatically by vacuum air
2.2 Sucking length: 900mm（Guarantee）
2.3 Controlling type: the unit is driven by air cylinder, the sucking power is adjusted by the mean of a convertor
2.4 Sucking plate: Aluminum
2.5 Adjustment of sucking unit: The unit can be adjusted on up-down, left-right and front-rear directions
3 Collection Unit
3.1 Type: 2 Position Shuttle unit
3.2 Collecting height: 720mm
3.3 Fin length: 100-900mm (the product for 4holes to 36holes, adjustable)
3.4 Fin Blow Down unit
4 Electrical System
4.1 Type: stand-up electrical box, movable operation panel
4.2 Power voltage: AC380V, 50Hz, 3P
4.3 Operation voltage: AC380V, 50Hz, 1P
4.4 Crossing notch: count periodically, air cylinder is controlled by the electrical part
4.5 End notch: count periodically, air cylinder is controlled by the electrical part
4.6 Middle notch: count periodically, air cylinder is controlled by the electrical part
4.7 Sewing-machining cut: count periodically, air cylinder is controlled by the electrical part
4.8 Program Change System: changeable for 2P to 1P,
4.9 Stow-stopping Circuit: count periodically
4.10 Air pressure requested: 5Kg/cm2(+10%)
4.11 Air consumption: 1000l/min
4.12 The fin press will stop automatically once there is on material, alarm of collection and insufficient pressure of hydraulic system.
4.13 The human/machine interface will show the alarm content
